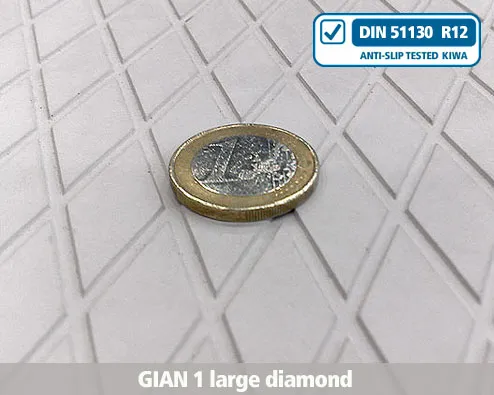

GIAN 1 large diamond texture (35 x 14 mm)

The GIAN 1 large diamond has been greatly improved compared to the previous small diamond pattern. A widened drainage groove now accelerates the removal of rainwater. This drainage process is enhanced when the concrete walking surface is stepped on. The rolling motion of the shoe presses the water into the groove. Therefore, the GIAN 1 large diamond effectively counters aquaplaning in two ways.

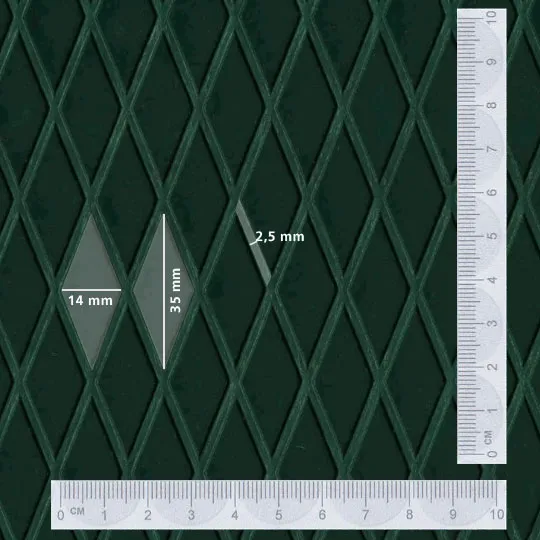

Another innovation of the GIAN 1 large pattern is the enlargement of the diamond. The new dimensions are 35 x 14 mm. This results in a more appealing visual, as the enlarged structure is visually more serene.

* the small diamond pattern will continue to be available under the name GIAN 0.

Indicative calculation when applying the GIAN anti-slip texture for concrete elements, such as stairs, balconies, and galleries.

(Each project has its own specificities; the mentioned square meter prices are indicative prices and do not account for any potential modification of the concrete mold.)

Multiple concrete pours into the concrete mold result in a lower cost of the GIAN concrete texture:
Reusing the concrete mold is advantageous for the cost of the concrete mold as well as for the GIAN texture mat incorporated into the mold.

By repeatedly using the mold containing the GIAN texture mat, the square meter (m²) price of the GIAN anti-slip texture becomes highly attractive.

Calculated prices include adhesive, cutting waste, and any necessary repairs during the processing:
At an average usage of 25 times for the concrete mold, the square meter price of a GIAN anti-slip texture in the concrete element, such as stairs, balcony, or gallery slab, is € 2.40 per square meter.

At an average usage of 50 times for the concrete mold, the square meter price of a GIAN anti-slip texture in the concrete element, such as stairs, balcony, or gallery slab, is € 1.20 per square meter.

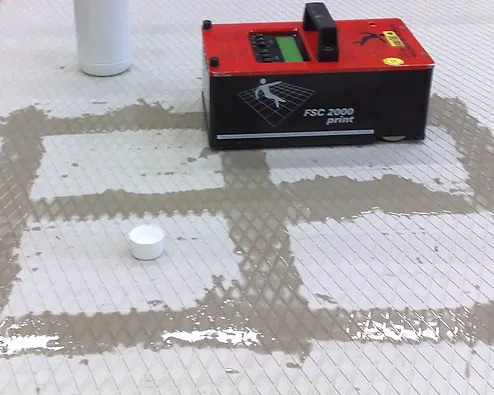

While walking, a special form of aquaplaning can occur. Motorists are familiar with this phenomenon. When they drive on a wet highway, a thin layer of water can form between the road surface and the tires. As a result, the car momentarily loses contact with the asphalt and becomes uncontrollable for a short period. Something similar happens when someone walks on, for instance, a wet slippery surface. The thin layer of water between the shoe sole and the flat surface causes an extremely low friction resistance, resulting in a high likelihood of slipping.

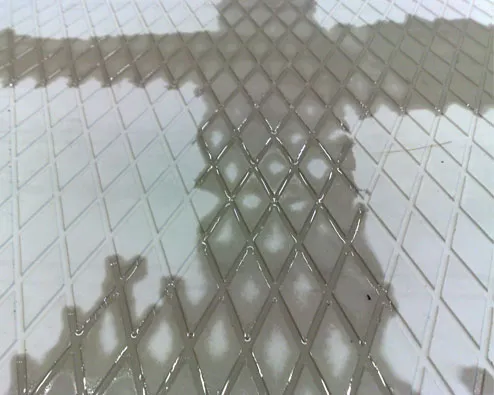

Aquaplaning on stairs, walkways, balconies, and other walking surfaces can be effectively prevented. The first step in this process is to ensure that water under the shoe sole drains away quickly.

Hence, nearly all GIAN structures incorporate small channels into the concrete, allowing the shoe sole to expel water. The second step in the process to provide concrete with optimal anti-slip properties involves combining it with a micro-textured structure. For instance, by employing a GIAN texture mat that imprints a sandblasted texture onto the concrete. The sandblasted texture prevents aquaplaning from even forming.

Advice:
For optimal anti-slip safety on concrete walking surfaces, we recommend structures that combine drainage channels and a micro-textured pattern.
